Timber construction has been a staple in building for centuries, offering a natural, robust, and aesthetically pleasing material for structures.
As architects, engineers, and builders look to maximize the potential of timber construction, it’s essential to understand the components that can enhance the structural integrity and performance of timber structures.
Among these components, noggins, bridging, and blocking play crucial roles.
Key Takeaways
- Noggins, bridging, and blocking are crucial components in timber construction that enhance structural integrity by preventing twisting, warping, and misalignment of the framework.
- These elements work synergistically to distribute loads effectively, maintain proper alignment, and optimize the use of timber, which in turn contributes to the longevity and durability of timber structures.
- Besides structural benefits, the use of noggins, bridging, and blocking in timber construction also promotes environmental sustainability as timber is a renewable resource and contributes to carbon sequestration.
- The aesthetic appeal of timber structures can be further enhanced through the strategic use and design of noggins, bridging, and blocking, blending structural integrity with visual appeal.
What Are They?
So what exactly are noggins, bridging, and blocking and how do they enhance timber structures? Let’s find out.
Noggins: Strengthening the Frame

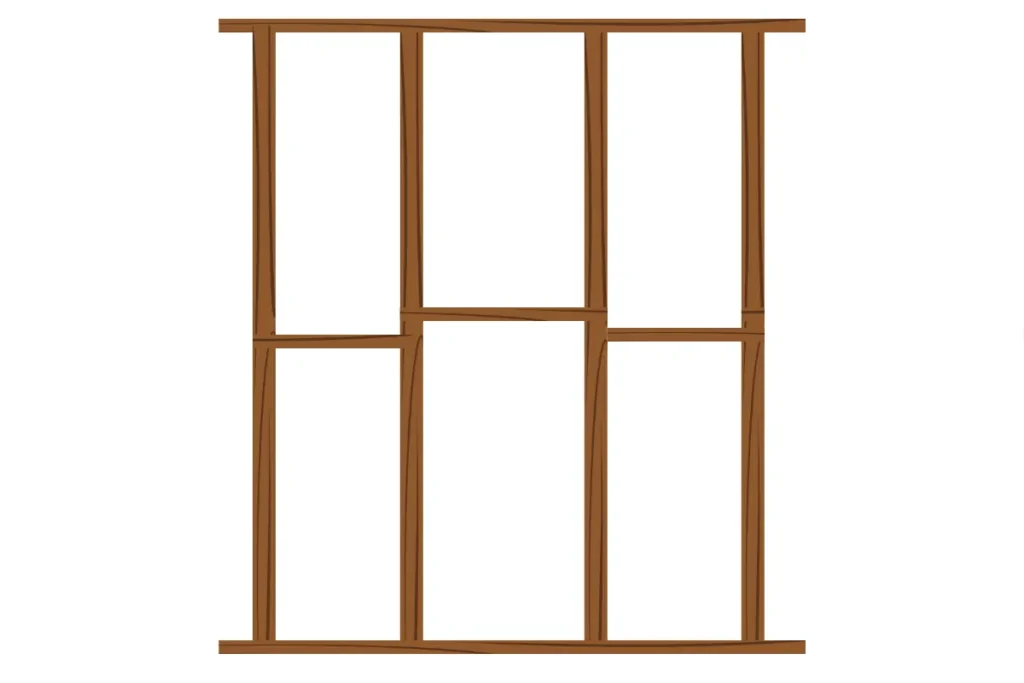

Noggins are horizontal bracing pieces placed between the vertical studs in a timber frame to prevent the twisting or warping of the structure. They are an essential component in maintaining the rigidity and stability of timber frameworks.
By evenly distributing loads and providing lateral support, noggins help in enhancing the overall structural performance and longevity of timber constructions.
Bridging: Distributing Loads Effectively
Bridging in timber construction refers to the placement of additional bracing or support elements between joists or beams to distribute loads more effectively and prevent twisting. Bridging can also be used to support flooring and underlayment.
There are two primary types of bridging: cross-bridging and solid bridging.

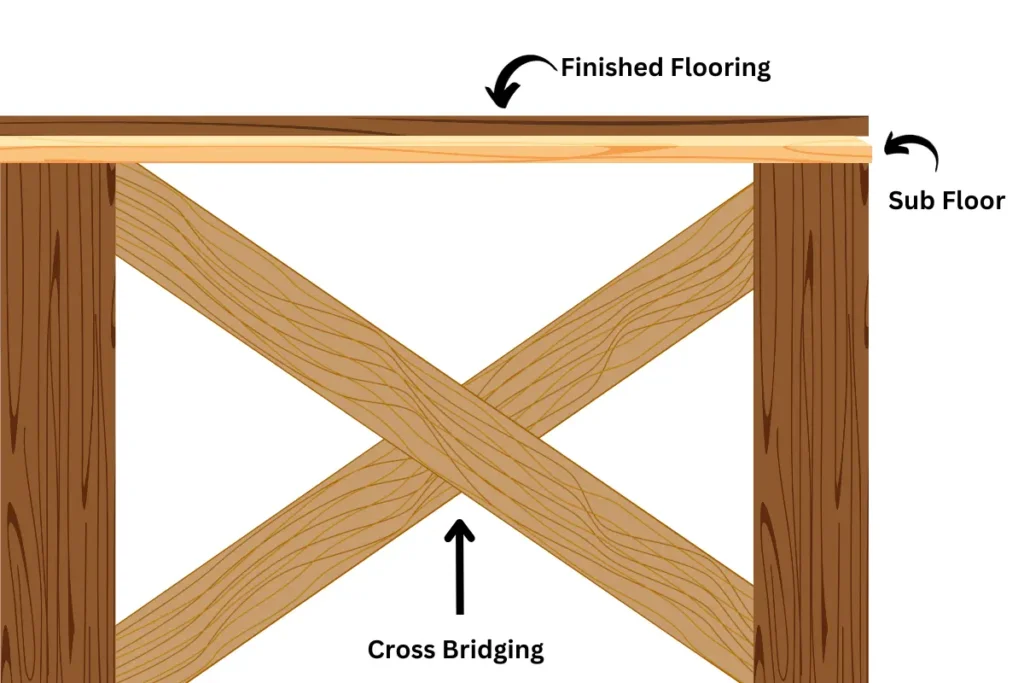

Cross bridging forms an X-shape between joists, spreading out any concentrated loads.

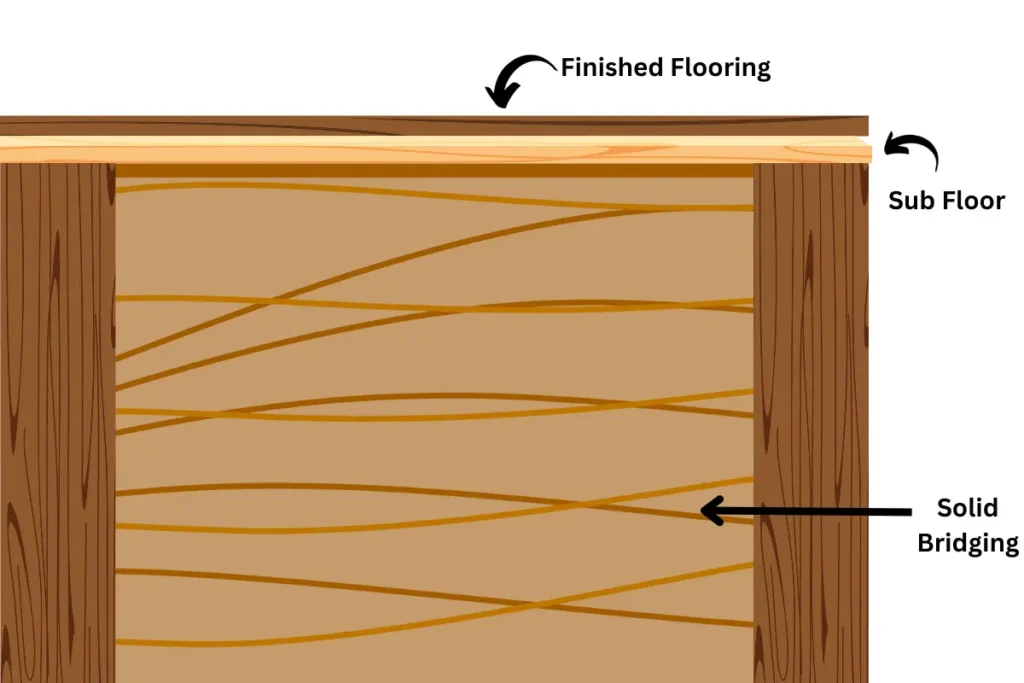

Solid bridging, on the other hand, involves placing a solid piece of timber between joists, creating a firm support that aids in load distribution.
Blocking: Preventing Joist Rotation
Blocking is a practice wherein small pieces of timber are placed perpendicularly between joists to prevent their rotation or lateral movement.
This technique is vital in ensuring the proper alignment and spacing of joists, which in turn, contributes to the overall stability and strength of the timber structure.
Herringbone struts, an alternative to solid block bridging, are used to straighten troublesome timbers and allow the passage of pipes and cables. They also reduce drilling and weakening of structures, providing an easy route for plumbers and electricians.
Benefits and Uses
To strengthen and support your timber structures, consider utilizing noggins, bridging, and blocking for added stability and load-bearing capacity. These techniques offer numerous benefits and uses.
Benefits:
- Strengthen and stiffen timber structures, ensuring they can withstand heavy loads and external forces.
- Straighten wall studs and floor joists, preventing them from bowing or warping over time.
- Provide strong fixing points for future installations, such as shelves or cabinets.
- Support the edges of plasterboard sheets, preventing sagging or cracking.
- Carry extra load in floor structures, allowing for the addition of heavier furniture or equipment.
Uses:
- Noggins, bridging, and blocking can be used to straighten troublesome timbers, improving the overall appearance and functionality of the structure.
- They also allow for the easy passage of pipes and cables, reducing the need for extensive drilling and potential weakening of the structure.
- Additionally, they provide a convenient route for plumbers and electricians to access necessary utilities.
Noggins, Bridging, & Blocking: The Synergistic Effect
The combined use of noggins, bridging, and blocking in timber construction creates a synergistic effect that significantly enhances the structural integrity and longevity of timber structures.
These components work together to distribute loads, prevent warping, and maintain the proper alignment of structural elements. By investing in these reinforcing techniques, builders can ensure that their timber constructions are robust, durable, and capable of withstanding the tests of time.
The Environmental Edge
In addition to structural benefits, timber construction, when enhanced with noggins, bridging, and blocking, offers an environmental edge.
Timber is a renewable resource, and its use in construction contributes to carbon sequestration, which is vital in combatting climate change. Moreover, these reinforcing techniques optimize the use of timber, minimizing waste and promoting sustainability.
The Aesthetic Appeal
Timber structures, with their natural textures and warm tones, have a timeless aesthetic appeal. The use of noggins, bridging, and blocking not only strengthens the structure but also provides opportunities for aesthetic enhancements.
These components can be designed and arranged in a way that adds a unique character to the timber construction, blending structural integrity with visual appeal.
Conclusion
In conclusion, the inclusion of noggins, bridging, and blocking in timber construction is crucial for achieving enhanced structural performance, environmental sustainability, and aesthetic appeal.
These components provide a solid foundation upon which the other elements of the structure can securely rest, ensuring the longevity and durability of timber structures.
Through understanding and implementing these crucial structural enhancements, builders, architects, and engineers can unlock the full potential of timber construction, creating structures that are not only strong and durable but also beautiful and eco-friendly.
